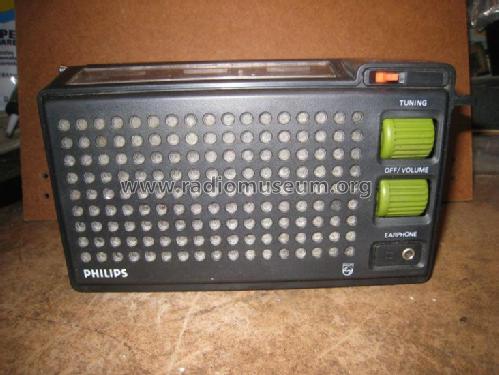

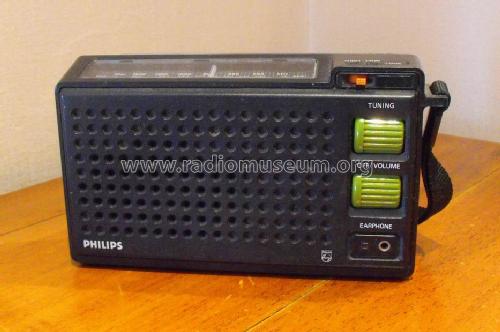

Jenny 150 90RL150
Philips - Österreich: Jenny 150 90RL150 [Radio] ID = 112512 475x435
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1975/1976 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 10: |
|---|
| Main principle | Superheterodyne (common); ZF/IF 455 kHz |
|---|---|
| Tuned circuits | 5 AM circuit(s) 8 FM circuit(s) |
| Wave bands | Broadcast (BC) and FM or UHF. |
| Details | |
| Power type and voltage | Dry Batteries / 4 x 1.5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: Jenny 150 90RL150 - Philips - Österreich |
| Material | Plastics (no bakelite or catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 175 x 103 x 48 mm / 6.9 x 4.1 x 1.9 inch |
| Net weight (2.2 lb = 1 kg) | 0.5 kg / 1 lb 1.6 oz (1.101 lb) |
| Source of data | Radiokatalog Band 2, Ernst Erb |
| Literature/Schematics (1) | -- Original-techn. papers. |
Model page created by Günther Stabe † 19.8.20. See "Data change" for further contributors.
