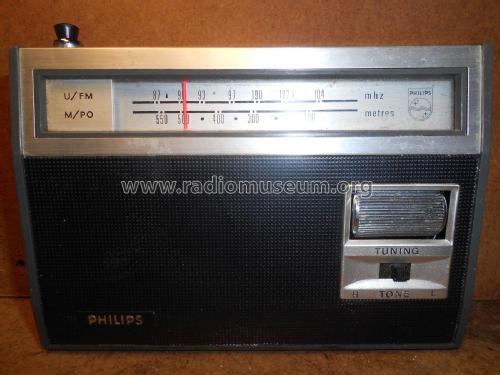

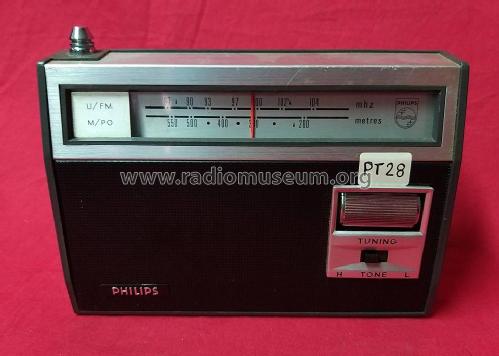

Jenny 90RL194
Philips - Österreich
- Country
- Austria
- Manufacturer / Brand
- Philips - Österreich
- Year
- 1970
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 92325
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 11
- Semiconductors
- CS9016 CS9018 CS9017 CS9017 CS9018 CS9010 CS9015 CS9003 CS1599 unknown_tr CS9013 1N60 1N60 CDG00
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Dry Batteries / 4 × 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Jenny 90RL194 - Philips - Österreich
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 155 x 110 x 47 mm / 6.1 x 4.3 x 1.9 inch
- Notes
- Paralleltype zu Horny SA6317.
- Price in first year of sale
- 495.00 ATS
- Source of data
- -- Original-techn. papers.
- Mentioned in
- Praktiker, Nr. 5/1970, Seite 20
- Literature/Schematics (1)
- -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" marzo 1971.)
- Author
- Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
