• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1967/1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 217606

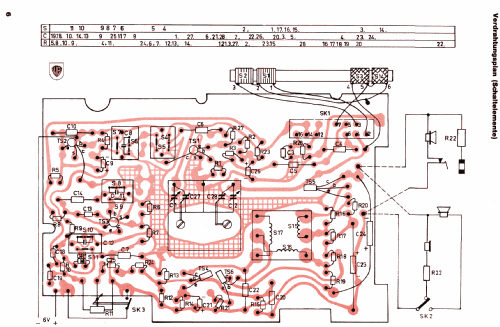

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AF117 AF117 AF117 OC81 OC81 OC81 OA70

• Main principle
• Superheterodyne (common); ZF/IF 452 or 460 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Jenny L2X21T - Philips - Österreich

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes
• 2 Ausführungen: braun und schwarz.
  Philips Jenny L2X21T wurde wegen dem "X" in der Bezeichnung in Holland (evtl. für Österreich) gefertigt.
  Siehe auch Philips Holland L2X21T.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
