• Country
• Denmark

• Manufacturer / Brand
• Philips Radio A/S; København

• Year
• 1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 286231

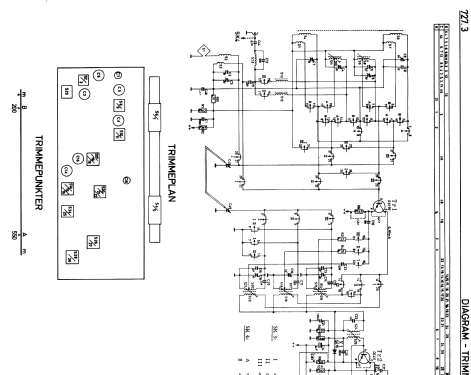

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC170 OC45 OC45 OC75 OC75 OC74 OC74

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Various materials

• from Radiomuseum.org
• Model: Jolly LDK314T - Philips Radio A/S; København

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 307 x 187 x 94 mm / 12.1 x 7.4 x 3.7 inch

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
