Junior 1670

Junior 1670; Philips; Budapest (ID = 1768924) Radio
Junior 1670; Philips; Budapest (ID = 1598627) Radio Junior 1670; Philips; Budapest (ID = 1598629) Radio
Junior 1670; Philips; Budapest (ID = 1598630) Radio Junior 1670; Philips; Budapest (ID = 1598631) Radio
Junior 1670; Philips; Budapest (ID = 586102) Radio Junior 1670; Philips; Budapest (ID = 743208) Radio
Junior 1670; Philips; Budapest (ID = 743209) Radio Junior 1670; Philips; Budapest (ID = 1676464) Radio
Junior 1670; Philips; Budapest (ID = 1727957) Radio Junior 1670; Philips; Budapest (ID = 1727958) Radio
Use red slider bar for more.

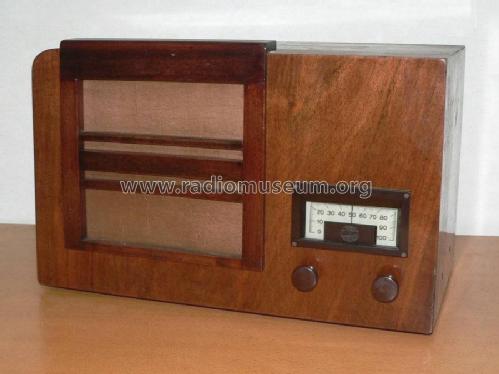

Junior 1670; Philips; Budapest (ID = 1598627) Radio
Philips; Budapest: Junior 1670 [Radio] ID = 1598627 901x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model Junior 1670, Philips; Budapest:
Thanks for Mr.Szécsényi Lajos, Hungary and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Hungary
Manufacturer / Brand:  Philips; Budapest
Year: 1932–1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: E446 E443H or B443 1805
Conflicting model year with tube data.
The model date contradicts tube dates. [ E443H (1933)]
Main principle TRF with regeneration
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 120; 150; 220 Volt
Loudspeaker Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931).
Power out
from Radiomuseum.org Model: Junior 1670 - Philips; Budapest
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 330 x 270 x 220 mm / 13 x 10.6 x 8.7 inch
Price in first year of sale 130.00 Pengö
Literature/Schematics (1) The History of Hungarian Radio Broadcasting and a Catalogue of Radio Receivers

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from Philips; Budapest
Here you find 213 models, 209 with images and 115 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
