• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 24352

• • Brand: Deutsche Philips-Ges.

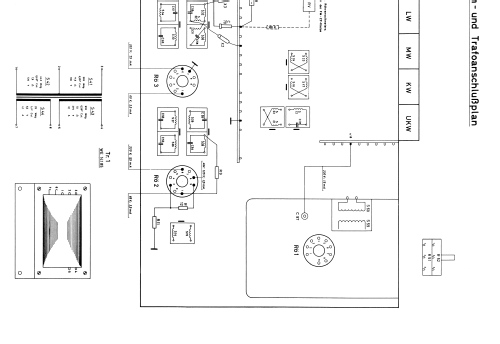

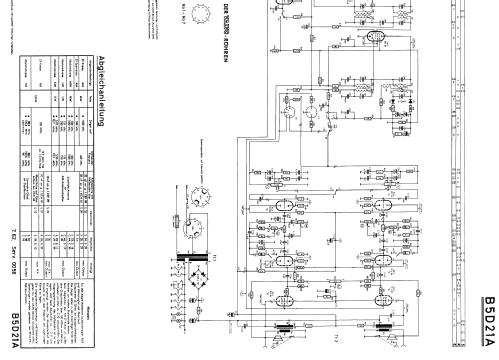

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EBF89 ECC83 EM84 ECL86 ECL86

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 125/220 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org

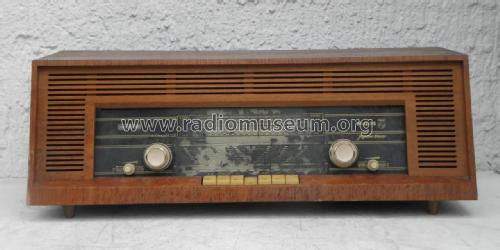

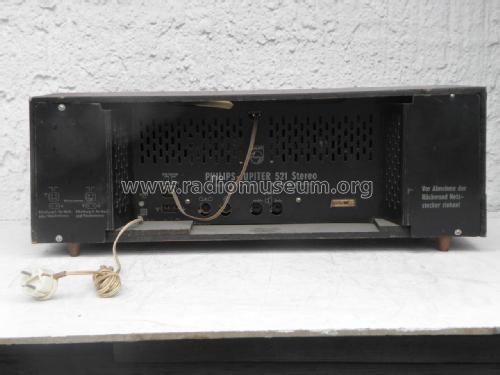

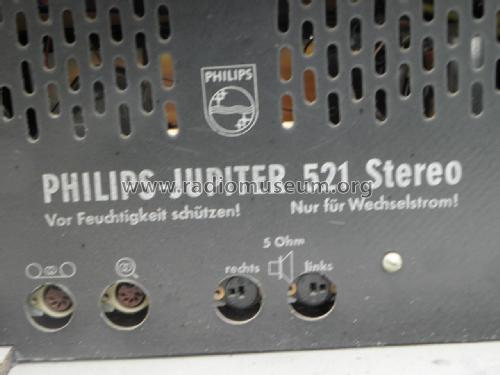

• Model: Jupiter 521 Stereo B5D21A [Teak] - Philips Radios - Deutschland

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 670 x 255 x 255 mm / 26.4 x 10 x 10 inch

• Notes
• Dioden: 2× OA79

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Price in first year of sale
• 459.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1962/1963

• Other Models

• Here you find 2540 models, 2252 with images and 1555 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
