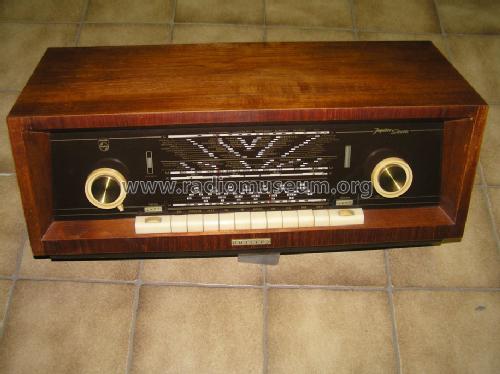

Jupiter 531 Stereo B5D31A; Philips Radios - (ID = 896348) Radio
Use red slider bar for more.

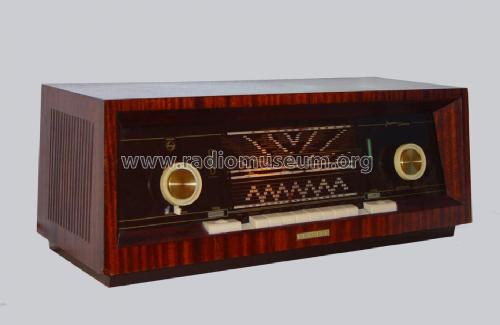

Jupiter 531 Stereo B5D31A; Philips Radios - (ID = 40297) Radio
Philips Radios -: Jupiter 531 Stereo B5D31A [Radio] ID = 40297 933x607
Select picture or schematic to display from thumbnails on the right and click for download.
For model Jupiter 531 Stereo B5D31A, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1963–1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 ECH81 EAF801 EF184 EM87 EM87 ECC808 ECL86 ECL86
Semiconductors (the count is only for transistors) 3: AF126 AF126 AF126 OA79 AA119
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 125/220 Volt
Loudspeaker 2 Loudspeakers / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: Jupiter 531 Stereo B5D31A - Philips Radios - Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 630 x 240 x 250 mm / 24.8 x 9.4 x 9.8 inch
Notes Halbleiter-Stereo-Dekoder. Stereo-NF-Verstärker mit 2 Endstufen je 4,5 W.
Net weight (2.2 lb = 1 kg) 9.7 kg / 21 lb 5.9 oz (21.366 lb)
Price in first year of sale 410.00 DM
Collectors' prices
External source of data Erb
Source of data Handbuch VDRG 1963/1964
Literature/Schematics (1) -- Original-techn. papers.
