• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1963/1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 24771

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• ECC85 ECH81 EAF801 EF184 EM87 EM87 ECC83 ECC808 ECC808 ELL80 ELL80

• Number of Transistors
• 3

• Semiconductors
• AF126 AF126 AF126 OA79 BA102 AA119

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 125/220 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org

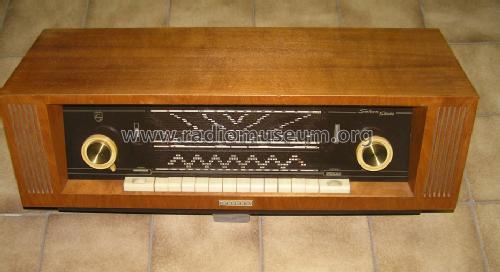

• Model: Saturn 631 Stereo B6D31A - Philips Radios - Deutschland

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 730 x 240 x 250 mm / 28.7 x 9.4 x 9.8 inch

• Notes
• Transistoren: 3× AF126; Dioden: 2× OA79, BA102, 7× AA119. Stereo-NF-Verstärker mit 2 Gegentakt-Endstufen je 9 W.

• Net weight (2.2 lb = 1 kg)
• 10.5 kg / 23 lb 2 oz (23.128 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1963/1964

• Mentioned in
• Funk-Technik (FT) (13/1963, S. 462, 463 / Beschreibung, Schema Stereo-Decoder)

• Other Models

• Here you find 2540 models, 2251 with images and 1555 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
