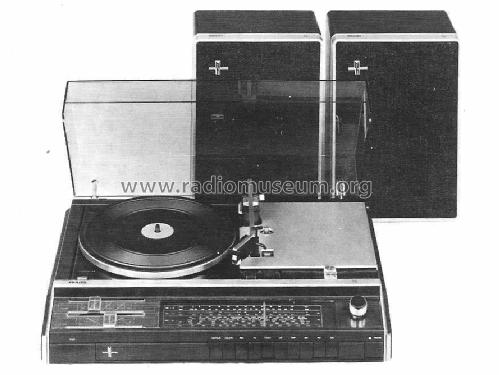

Konzertmeister 852 22RH852
Philips - Österreich
- Country
- Austria
- Manufacturer / Brand
- Philips - Österreich
- Year
- 1975
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 83540
Picture courtesy of guest Joeri Boi
Picture courtesy of guest Joeri Boi
Picture courtesy of guest Joeri Boi
Picture courtesy of guest Joeri Boi
Picture courtesy of guest Joeri Boi
Picture courtesy of guest Joeri Boi
Picture courtesy of guest Joeri Boi
Picture courtesy of guest Joeri Boi
Picture courtesy of guest Joeri Boi
Picture courtesy of guest Joeri Boi
Picture courtesy of guest Joeri Boi

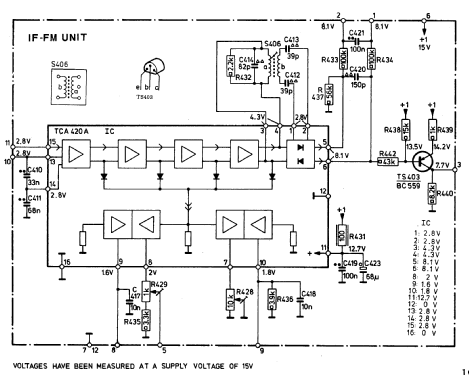

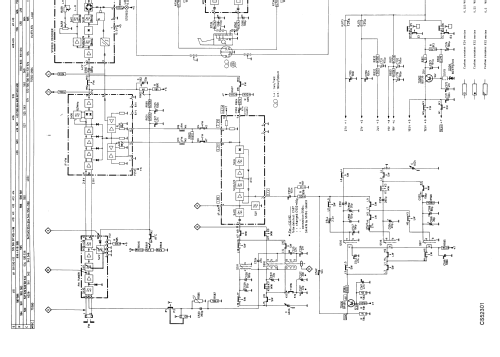

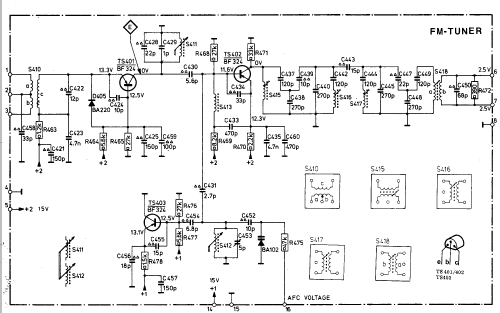

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 25
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Konzertmeister 852 22RH852 - Philips - Österreich
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 545 x 102 x 398 mm / 21.5 x 4 x 15.7 inch
- Notes

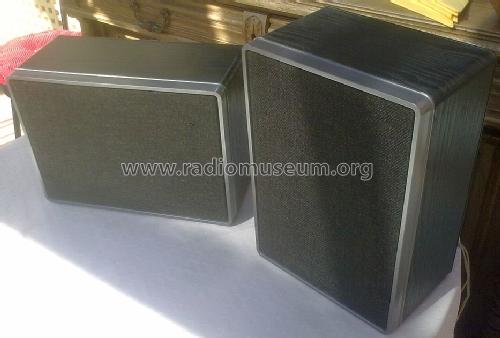

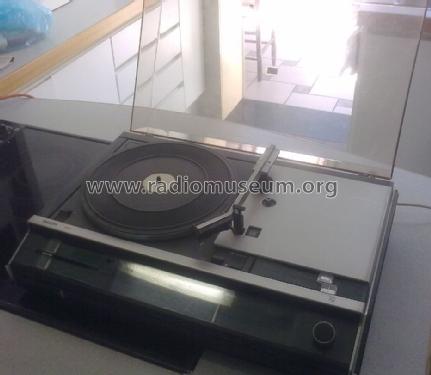

- Eingebauter Plattenspieler 22GC027, 2 externe LS-Boxen 22RH443.
- Source of data
- -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
- Author
- Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
