Konzertmeister kombi C811 22RH811 /62Z /93Z

• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 83409

• Picture
• Schematics

Previous Next

Previous Next

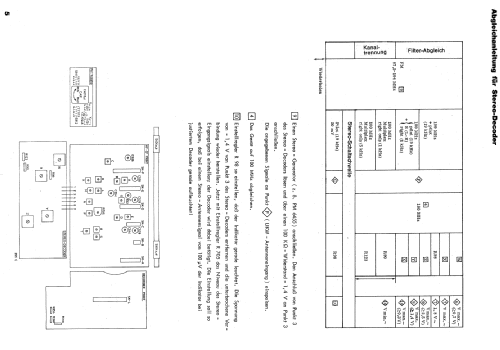

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 52

• Semiconductors
• BC148 BC148 BC158 BC148 BC148 BC148 BC148 BC148 BC148 BC149 BC149 BC148 BC148 BC148 BC148 BC149 BC149 BC148 BC148 BC148 BC148 AC127 AC128 AC188 BC148 AC127 AC126 BF195 BF334 BF335 BF195 BC149 BC149 BC148 BC148 AC128 AC128 AD161 AD162 AD161 AD162 BF194 BF194 BF195 BC148 BC148 BC148 BC148 BC148 BC148 BC148 BC148

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: Konzertmeister kombi C811 22RH811 /62Z /93Z - Philips - Österreich

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 530 x 110 x 210 mm / 20.9 x 4.3 x 8.3 inch

• Notes

• Ausführung:
  /62Z = ohne DNL (Dynamic Noise Limiter); mit 44 Transistoren.
  /93Z = mit DNL mit 52 Transistoren.

  2 externe LS-Boxen 22RH411 /01Z.

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Documents regarding this model

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
