• Year
  • 1960–1962
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 168023

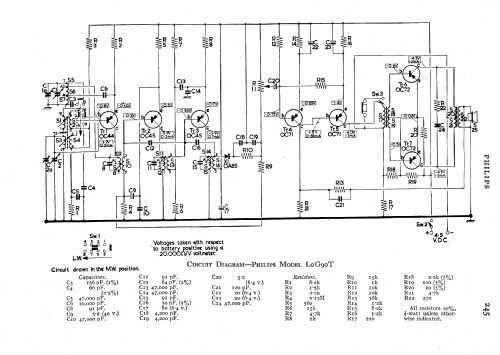

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz; 3 AF stage(s)
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Dry Batteries / 3 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Transistor Seven Personic L0G90T - Philips Electrical, Lamps,
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 5.5 x 3.25 x 1.25 inch / 140 x 83 x 32 mm
  • Notes
  • Philips L0G90T is a pocket portable radio "Transistor Seven" L0G90T Personic. Price £12. 0s. 7d. plus tax. It was still sold in 1962. See the L0X90T from the Netherlands. It is mainly the same. See also model L0G90T/01 with reversed tuning scale.
  • Price in first year of sale
  • 12.00 GBP
  • Source of data
  • -- Schematic
  • Author
  • Model page created by Keith Staines. See "Data change" for further contributors.
