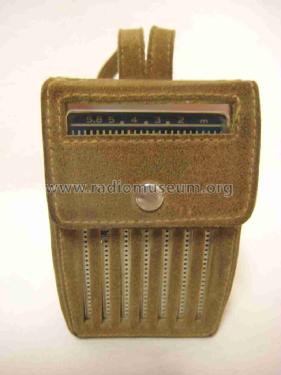

Transistor Six L0X10T /00G

Transistor Six L0X10T /00G; Philips; Eindhoven (ID = 67928) Radio

Transistor Six L0X10T /00G; Philips; Eindhoven (ID = 67929) Radio

Transistor Six L0X10T /00G; Philips; Eindhoven (ID = 1342679) Radio

Transistor Six L0X10T /00G; Philips; Eindhoven (ID = 1342681) Radio

Transistor Six L0X10T /00G; Philips; Eindhoven (ID = 1342682) Radio

Transistor Six L0X10T /00G; Philips; Eindhoven (ID = 1342683) Radio

Transistor Six L0X10T /00G; Philips; Eindhoven (ID = 1342684) Radio

Transistor Six L0X10T /00G; Philips; Eindhoven (ID = 1342685) Radio
Transistor Six L0X10T /00G; Philips; Eindhoven (ID = 1063753) Radio Transistor Six L0X10T /00G; Philips; Eindhoven (ID = 1063164) Radio
Transistor Six L0X10T /00G; Philips; Eindhoven (ID = 83607) Radio Transistor Six L0X10T /00G; Philips; Eindhoven (ID = 1063754) Radio
Transistor Six L0X10T /00G; Philips; Eindhoven (ID = 67927) Radio Transistor Six L0X10T /00G; Philips; Eindhoven (ID = 1927767) Radio
Use red slider bar for more.
Transistor Six L0X10T /00G; Philips; Eindhoven (ID = 1063753) Radio
Philips; Eindhoven: Transistor Six L0X10T /00G [Radio] ID = 1063753 511x730
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transistor Six L0X10T /00G, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1962/1963 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: AF116 AF117 AF117 OC75 or. OC59 OC74 or. OC79 OC140 or. OC79C OA95
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Transistor Six L0X10T /00G - Philips; Eindhoven tubes
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 93 x 64 x 29 mm / 3.7 x 2.5 x 1.1 inch
Notes

MW: 185 - 580 m (1622 - 517 kc/s).

The original service document states OC170, OC169, OC169, OC75, OC74, OC140, and OA95 as transistor line-up, however this is erroneous (see documents).

Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Collectors' prices
Source of data -- Original-techn. papers.

Model page created by Günther Stabe. See "Data change" for further contributors.
