L0X91T/05W

L0X91T/05W; Philips; Eindhoven (ID = 2048193) Radio L0X91T/05W; Philips; Eindhoven (ID = 2048194) Radio
L0X91T/05W; Philips; Eindhoven (ID = 2048195) Radio L0X91T/05W; Philips; Eindhoven (ID = 2048196) Radio
Use red slider bar for more.

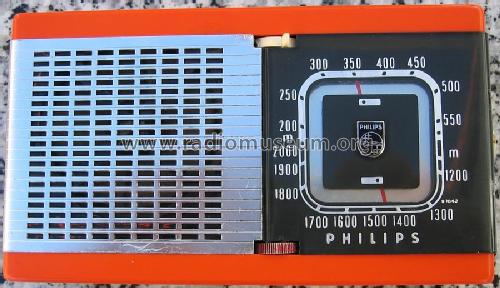

L0X91T/05W; Philips; Eindhoven (ID = 2048193) Radio
Philips; Eindhoven: L0X91T/05W [Radio] ID = 2048193 900x520
Select picture or schematic to display from thumbnails on the right and click for download.
For model L0X91T/05W, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1963 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: OC44 OC45 OC45 OC71 OC71 OC72 OC72
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / AA: 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: L0X91T/05W - Philips; Eindhoven tubes
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 140 x 80 x 35 mm / 5.5 x 3.1 x 1.4 inch
Notes

mit Ohrhörer Anschluss. Gehäusefarbe: rot.

Siehe auch Philips L0X91T/95F in grünem Gehäuse.

Model page created by Gerhard Härtl. See "Data change" for further contributors.
