• Year
  • 1961
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 166689

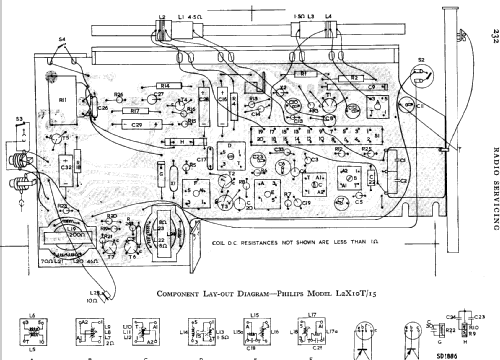

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 452 kHz; 3 AF stage(s)
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Dry Batteries / 4 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: L2X10T /00R - Philips; Eindhoven tubes
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 205 x 105 x 45 mm / 8.1 x 4.1 x 1.8 inch
  • Notes
  • Philips L2X10T/00R is similar to model L2X10T/15L and other suffixes.

    ZF (00-Version): 452 kHz, (15-Version): 470 kHz.

    LW: 260 - 160 kHz, MW: 1622 - 517 kHz, KW: 15.5 - 5.9 MHz (19.4 - 51 m)

  • Source of data
  • -- Original-techn. papers.
  • Author
  • Model page created by José Luis Castro. See "Data change" for further contributors.
