• Country
• Belgium

• Manufacturer / Brand
• Philips Belgium (Belgien)

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 346863

• Number of Tubes
• 4

• Valves / Tubes
• DK96 DF96 DAF96 DL96

• Main principle

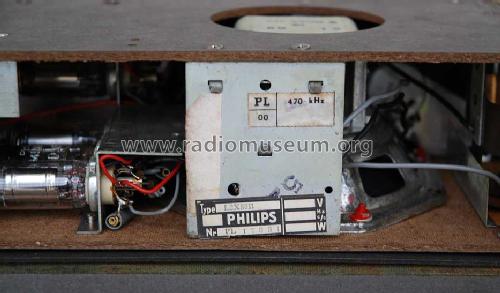

• Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 2 × 1.5 & 67,5 Volt

• Loudspeaker

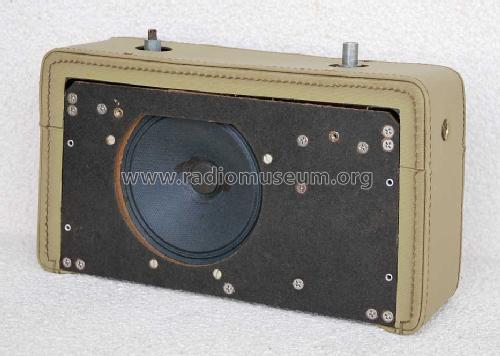

• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

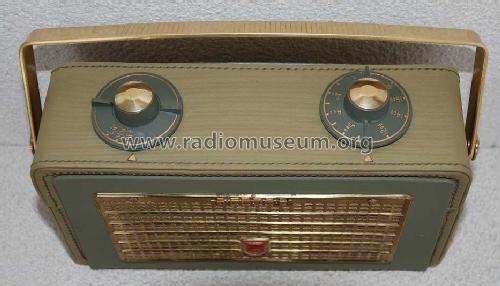

• Model: L2X80B - Philips Belgium Belgien

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 266 x 153 x 81 mm / 10.5 x 6 x 3.2 inch

• Notes
• • MW: 187 - 569 m
  • LW:  1175 - 2000 m

  Technische Unterlagen beim L2X80B, Niederlande

• Net weight (2.2 lb = 1 kg)
• 0.5 kg / 1 lb 1.6 oz (1.101 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
