For model Portaletta L3F60T, Philips France; Paris:
Ensemble

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: OC44 OC45 OC45 OC71 OC71 OC72 OC72 OA79 OA85
Main principle Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Portaletta L3F60T - Philips France; Paris
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 250 x 180 x 90 mm / 9.8 x 7.1 x 3.5 inch
Notes

2 gammes d'ondes : PO de 185 à 575 m, GO de 1150 à 1950 m. Cadre ferrite de 20 cm incorporé. HP type 13 120/77 (Z = 5 Ω). Clavier 4 touches.

Coffret bois gainé en Rexine, marron ou rouge. Livrable avec housse de transport.

Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Mentioned in -- Original-techn. papers.

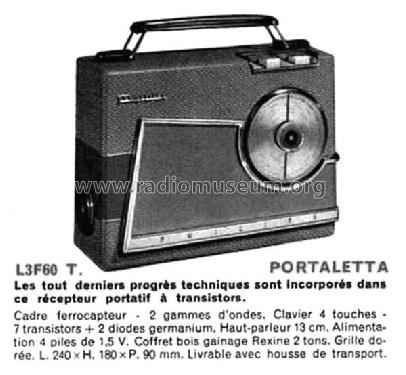

Literature/Schematics (1) -- Original prospect or advert

Model page created by Patrice Zeissloff. See "Data change" for further contributors.
