• Country
• Great Britain (UK)

• Manufacturer / Brand
• Philips Electrical, Lamps, Industrial - Miniwatt; London

• Year
• 1962 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 168029

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AF117 AF117 OC71 OC81D OC81 OC81

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 2 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.8 W (unknown quality)

• from Radiomuseum.org

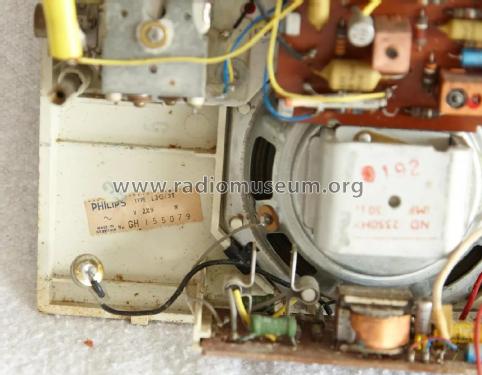

• Model: L3G13T - Philips Electrical, Lamps,

• Dimensions (WHD)
• 10.75 x 7.75 x 3.5 inch / 273 x 197 x 89 mm

• Notes
• Portable radio with car aerial socket.

• Net weight (2.2 lb = 1 kg)
• 4 lb (4 lb 0 oz) / 1.816 kg

• Source of data
• -- Schematic

• Literature/Schematics (1)
• Radio And Television Servicing books (R&TVS) (Paul Stennings DVD.)

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
