L3G23T; Philips Electrical, (ID = 727111) Radio

L3G23T; Philips Electrical, (ID = 727112) Radio

L3G23T; Philips Electrical, (ID = 727113) Radio
L3G23T; Philips Electrical, (ID = 369844) Radio L3G23T; Philips Electrical, (ID = 369845) Radio
L3G23T; Philips Electrical, (ID = 1202855) Radio L3G23T; Philips Electrical, (ID = 1202857) Radio
L3G23T; Philips Electrical, (ID = 1202858) Radio L3G23T; Philips Electrical, (ID = 1202859) Radio
L3G23T; Philips Electrical, (ID = 1202860) Radio L3G23T; Philips Electrical, (ID = 1202861) Radio
L3G23T; Philips Electrical, (ID = 1202862) Radio L3G23T; Philips Electrical, (ID = 2004584) Radio
Use red slider bar for more.
L3G23T; Philips Electrical, (ID = 369844) Radio
Philips Electrical,: L3G23T [Radio] ID = 369844 900x617
Select picture or schematic to display from thumbnails on the right and click for download.
For model L3G23T, Philips Electrical, Lamps, Industrial - Miniwatt; London:
My 1962/3 Philips L3G23T 6 transistor MW/LW portable radio in its two tone green rexine covered wooden case.

Country:  Great Britain (UK)
Manufacturer / Brand:  Philips Electrical, Lamps, Industrial - Miniwatt; London
Year: 1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: AF117 AF117 OC71 OC81D OC81 OC81
Main principle Superheterodyne (common); ZF/IF 470 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 2 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.8 W (unknown quality)
from Radiomuseum.org Model: L3G23T - Philips Electrical, Lamps,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 11 x 7.875 x 3.375 inch / 279 x 200 x 86 mm
Notes

Sockets for aerial, tape recorder and earphone. 6 x 4 inch elliptical loudspeaker.

The earliest version had a blue or red vinyl covered cabinet, with the back panel fixed by screws mounted under the base. The fixing screws were then moved to the back panel in November 1962, making the batteries easier to replace.

Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Source of data -- Collector info (Sammler)

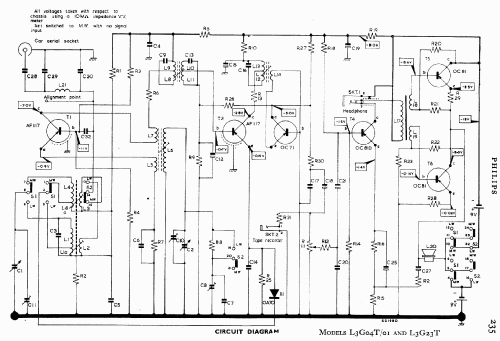

Literature/Schematics (1) Radio And Television Servicing books (R&TVS)

Model page created by Howard Craven. See "Data change" for further contributors.



All listed radios etc. from Philips Electrical, Lamps, Industrial - Miniwatt; London
Here you find 418 models, 283 with images and 278 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
