Ilona L3SF12T

Ilona L3SF12T; Philips Finland - (ID = 215661) Radio Ilona L3SF12T; Philips Finland - (ID = 766024) Radio
Ilona L3SF12T; Philips Finland - (ID = 779838) Radio Ilona L3SF12T; Philips Finland - (ID = 779839) Radio
Ilona L3SF12T; Philips Finland - (ID = 779843) Radio Ilona L3SF12T; Philips Finland - (ID = 779847) Radio
Ilona L3SF12T; Philips Finland - (ID = 779848) Radio Ilona L3SF12T; Philips Finland - (ID = 1960282) Radio
Ilona L3SF12T; Philips Finland - (ID = 2071560) Radio Ilona L3SF12T; Philips Finland - (ID = 2071561) Radio
Use red slider bar for more.
Ilona L3SF12T; Philips Finland - (ID = 215661) Radio
Philips Finland -: Ilona L3SF12T [Radio] ID = 215661 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ilona L3SF12T, Philips Finland - see also Fenno and TeRate

Country:  Finland
Manufacturer / Brand:  Philips Finland - see also Fenno and TeRate
Year: 1960 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: AF114 AF115 AF116 AF116 OC75 OC75 OC74 OC74 OA79 OA79 OA79 OA90
Main principle Superheterodyne (common); ZF/IF 460/6750 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details

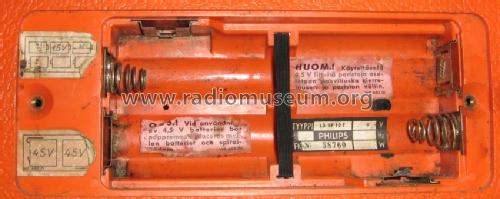

Power type and voltage Dry Batteries / 6 × 1,5 or 2 × 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
Power out
from Radiomuseum.org Model: Ilona L3SF12T - Philips Finland - see also
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 268 x 180 x 100 mm / 10.6 x 7.1 x 3.9 inch

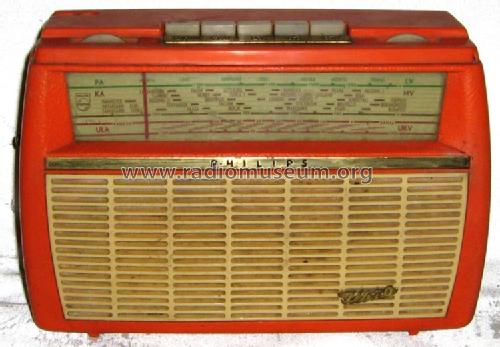

Notes Model is similar to Georgette L3D02T (transistors are different in RF/IF section); Finnish station dial.
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)

Model page created by Eero Ukkola. See "Data change" for further contributors.
