L3SF31T

L3SF31T; Philips Finland - (ID = 1501409) Radio
L3SF31T; Philips Finland - (ID = 1246033) Radio L3SF31T; Philips Finland - (ID = 1246034) Radio
L3SF31T; Philips Finland - (ID = 1246035) Radio L3SF31T; Philips Finland - (ID = 1246036) Radio
L3SF31T; Philips Finland - (ID = 1246037) Radio L3SF31T; Philips Finland - (ID = 1246038) Radio
Use red slider bar for more.
L3SF31T; Philips Finland - (ID = 1246033) Radio
Philips Finland -: L3SF31T [Radio] ID = 1246033 850x598
Select picture or schematic to display from thumbnails on the right and click for download.
For model L3SF31T, Philips Finland - see also Fenno and TeRate

Country:  Finland
Manufacturer / Brand:  Philips Finland - see also Fenno and TeRate
Year: 1963/1964 Category: Broadcast Receiver - or past WW2 Tuner

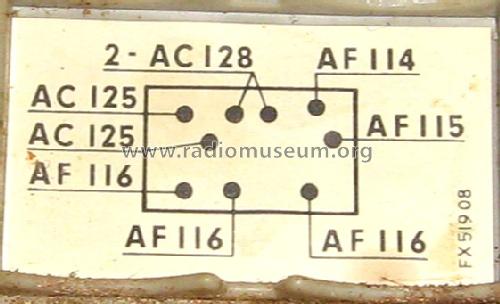

Semiconductors (the count is only for transistors) 9: AF114 AF115 AF116 AF116 AF116 AC125 AC125 AC128 AC128
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details

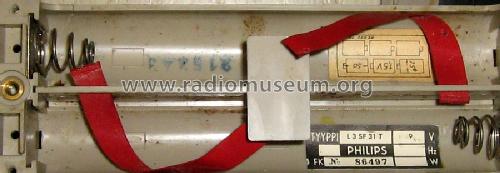

Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: L3SF31T - Philips Finland - see also
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 210 x 140 x 70 mm / 8.3 x 5.5 x 2.8 inch
Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)

Model page created by Jouko Laukkanen. See "Data change" for further contributors.



All listed radios etc. from Philips Finland - see also Fenno and TeRate
Here you find 159 models, 149 with images and 38 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
