L3SF90T

L3SF90T; Philips Finland - (ID = 1332498) Radio L3SF90T; Philips Finland - (ID = 1332499) Radio

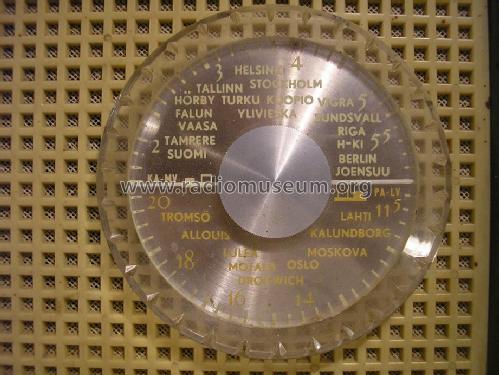

L3SF90T; Philips Finland - (ID = 1367034) Radio L3SF90T; Philips Finland - (ID = 1367035) Radio
L3SF90T; Philips Finland - (ID = 1367036) Radio L3SF90T; Philips Finland - (ID = 1367037) Radio
L3SF90T; Philips Finland - (ID = 1367038) Radio
Use red slider bar for more.
L3SF90T; Philips Finland - (ID = 1332498) Radio
Philips Finland -: L3SF90T [Radio] ID = 1332498 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model L3SF90T, Philips Finland - see also Fenno and TeRate

Country:  Finland
Manufacturer / Brand:  Philips Finland - see also Fenno and TeRate
Year: 1961 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast and LongWave in ONE range.
Details
Power type and voltage Dry Batteries / 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: L3SF90T - Philips Finland - see also
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 237 x 140 x 63 mm / 9.3 x 5.5 x 2.5 inch

Model page created by Timo Rantasaari. See "Data change" for further contributors.



All listed radios etc. from Philips Finland - see also Fenno and TeRate
Here you find 159 models, 149 with images and 38 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
