L3W56T /49

L3W56T /49; Philips Argentina, (ID = 710367) Radio

L3W56T /49; Philips Argentina, (ID = 1678224) Radio

L3W56T /49; Philips Argentina, (ID = 1678225) Radio

L3W56T /49; Philips Argentina, (ID = 1678226) Radio

L3W56T /49; Philips Argentina, (ID = 1678227) Radio

L3W56T /49; Philips Argentina, (ID = 1678228) Radio
L3W56T /49; Philips Argentina, (ID = 710366) Radio L3W56T /49; Philips Argentina, (ID = 1678014) Radio
L3W56T /49; Philips Argentina, (ID = 1678636) Radio L3W56T /49; Philips Argentina, (ID = 1678637) Radio
Use red slider bar for more.
L3W56T /49; Philips Argentina, (ID = 710366) Radio
Philips Argentina,: L3W56T /49 [Radio] ID = 710366 498x413
Select picture or schematic to display from thumbnails on the right and click for download.
For model L3W56T /49, Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires:

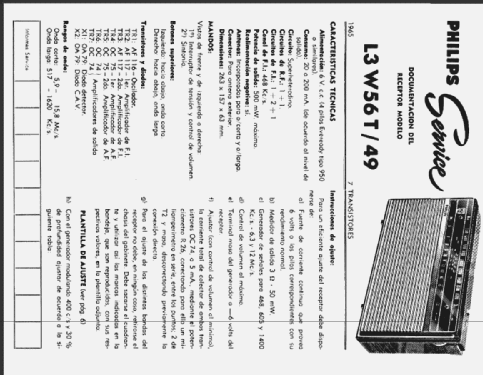

photo from the Philips Service Manual 1966

Country:  Argentina
Manufacturer / Brand:  Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires
Year: 1965 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: AF116 AF117 AF117 OC75 OC75 OC74 OC74 OA79 OA79
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: L3W56T /49 - Philips Argentina, FAPESA,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 263 x 157 x 63 mm / 10.4 x 6.2 x 2.5 inch
Notes

Rango de frecuencias: OM 517 a 1620 kHz, OC 5,9 a 15,8 MHz.
Consumo 20 a 200 mA.
Dos versiones de color, /GM y /LM.
La manija era del mismo color en ambos casos.

Net weight (2.2 lb = 1 kg) 1.7 kg / 3 lb 11.9 oz (3.744 lb)
Literature/Schematics (1) -- Original-techn. papers. (Manual de servicio Philips 1966)

Model page created by Jose Vigil. See "Data change" for further contributors.
