For model L3X88T, Philips; Eindhoven (tubes international!); Miniwatt:

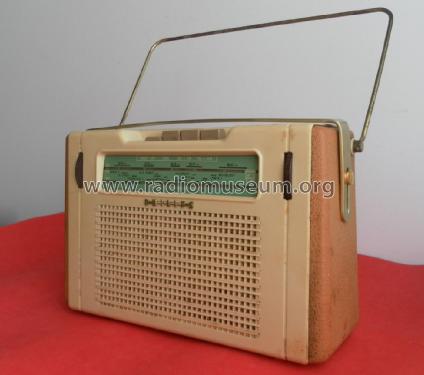

My Philips L3X88T MW/SW 7 transistor radio c. 1959. To be restored.

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1959 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: OC170 OC45 OC45 OC71 OC71 OC72 OC72 OA79
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / Type "D" 6 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: L3X88T - Philips; Eindhoven tubes
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 265 x 175 x 92 mm / 10.4 x 6.9 x 3.6 inch
Notes Philips Netherlands L3X88T.
Known as the Norelco L3X88T in North America.
Coverage SW/OC: 25...60 m.
Net weight (2.2 lb = 1 kg) 2.360 kg / 5 lb 3.2 oz (5.198 lb)
Source of data - - Data from my own collection
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 506 Folder 16)

Model page created by Howard Craven. See "Data change" for further contributors.
