L4F39T; Philips France; (ID = 1623975) Radio

L4F39T; Philips France; (ID = 1623976) Radio

L4F39T; Philips France; (ID = 1623977) Radio

L4F39T; Philips France; (ID = 1623980) Radio

L4F39T; Philips France; (ID = 1623982) Radio

L4F39T; Philips France; (ID = 1623983) Radio

L4F39T; Philips France; (ID = 1623984) Radio

L4F39T; Philips France; (ID = 1623986) Radio

L4F39T; Philips France; (ID = 1623987) Radio

L4F39T; Philips France; (ID = 1623989) Radio
L4F39T; Philips France; (ID = 2110657) Radio L4F39T; Philips France; (ID = 2110658) Radio
L4F39T; Philips France; (ID = 2110659) Radio L4F39T; Philips France; (ID = 2110660) Radio
L4F39T; Philips France; (ID = 2110661) Radio L4F39T; Philips France; (ID = 2110662) Radio
L4F39T; Philips France; (ID = 615217) Radio L4F39T; Philips France; (ID = 615220) Radio
Use red slider bar for more.
L4F39T; Philips France; (ID = 2110657) Radio

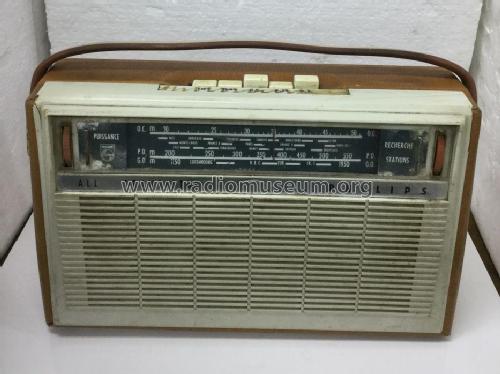

Philips France;: L4F39T [Radio] ID = 2110657 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model L4F39T, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1962/1963 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes or
Semiconductors (the count is only for transistors) 7: AF115 AF114 AF117 AF117 OC75 OC71 OC74 OC74 OA79 OA79
Main principle Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Dry Batteries / R20: 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: L4F39T - Philips France; Paris
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 310 x 190 x 95 mm / 12.2 x 7.5 x 3.7 inch
Notes

3 gammes d'ondes: OC de 15,80 à 5,85 MHz, PO de 1635 à 525 kHz, et GO de 268 à 147 kHz. Cadre ferrite de 200 mm PO-GO, cadre à air escamotable pour OC. Prise HP extérieur avec coupure de HP intérieur (Z = 5 ohms). Prise antenne-voiture.

Coffret deux tons, ceinture bois gainé, façade et dos polystyrène.

Transistor TS1 remplacé par AF114 dans certains appareils.

Net weight (2.2 lb = 1 kg) 2.450 kg / 5 lb 6.3 oz (5.396 lb)

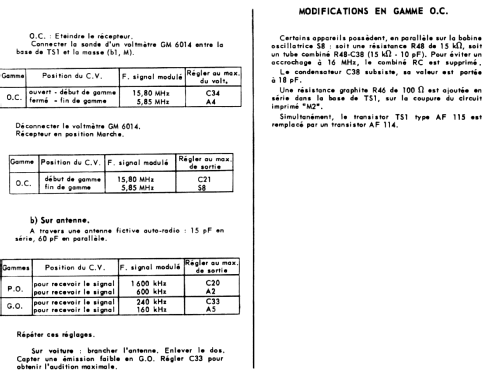

Mentioned in -- Original-techn. papers.

Model page created by Eddy Rischmann. See "Data change" for further contributors.
