L4W22T

L4W22T; Philips - Österreich (ID = 834953) Radio

L4W22T; Philips - Österreich (ID = 834954) Radio

L4W22T; Philips - Österreich (ID = 834959) Radio

L4W22T; Philips - Österreich (ID = 834958) Radio

L4W22T; Philips - Österreich (ID = 834957) Radio

L4W22T; Philips - Österreich (ID = 834956) Radio

L4W22T; Philips - Österreich (ID = 834955) Radio

L4W22T; Philips - Österreich (ID = 834952) Radio
L4W22T; Philips - Österreich (ID = 1596229) Radio L4W22T; Philips - Österreich (ID = 2177766) Radio
L4W22T; Philips - Österreich (ID = 2177768) Radio L4W22T; Philips - Österreich (ID = 2177769) Radio
L4W22T; Philips - Österreich (ID = 2177770) Radio L4W22T; Philips - Österreich (ID = 834751) Radio
Use red slider bar for more.
L4W22T; Philips - Österreich (ID = 1596229) Radio
Philips - Österreich: L4W22T [Radio] ID = 1596229 900x853

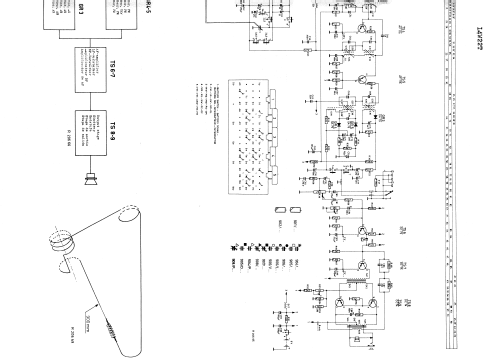

Select picture or schematic to display from thumbnails on the right and click for download.
For model L4W22T, Philips - Österreich:

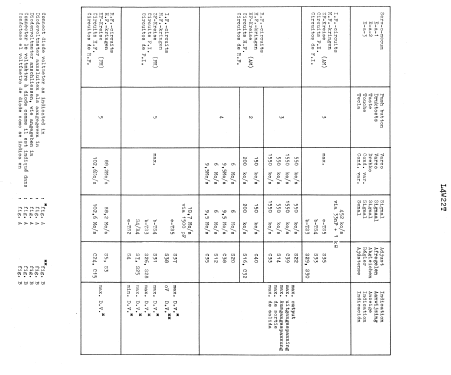

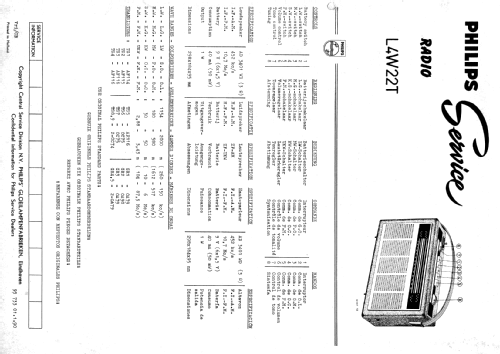

Picture from original technical papers.

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF114 AF115 AF116 AF116 AF116 OC75 OC75 OC74 OC74
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: L4W22T - Philips - Österreich
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 298 x 184 x 95 mm / 11.7 x 7.2 x 3.7 inch
Source of data -- Original-techn. papers.

Model page created by Hugo Sneyers. See "Data change" for further contributors.



All listed radios etc. from Philips - Österreich
Here you find 1055 models, 990 with images and 852 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
