• Country
• Belgium

• Manufacturer / Brand
• Philips Belgium (Belgien)

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30216

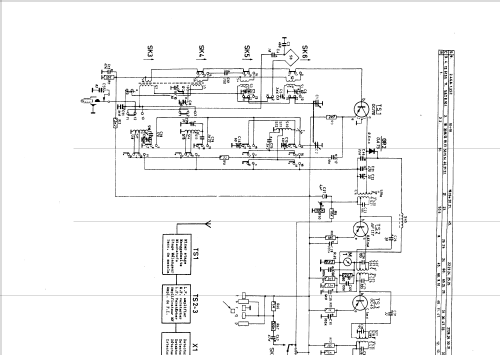

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC170 AF117 OC45 OC75 OC75 OC74 OC74 OA79 OA79

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Dry Batteries / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

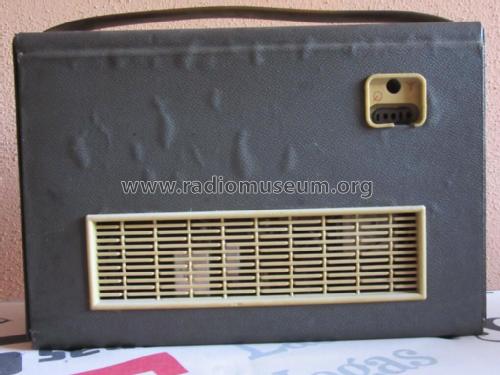

• Model: L4X20T - Philips Belgium Belgien

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 311 x 212 x 101 mm / 12.2 x 8.3 x 4 inch

• Notes

•

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
