• Country
• Sweden

• Manufacturer / Brand
• Philips, Svenska AB, Stockholm

• Year
• 1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 168364

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF102 AF121 AF121 AF121 AF121 AC126 AC125 AC128 AC128

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Various materials

• from Radiomuseum.org
• Model: Glory FM L5S51T /00 - Philips, Svenska AB, Stockholm

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 320 x 190 x 90 mm / 12.6 x 7.5 x 3.5 inch

• Net weight (2.2 lb = 1 kg)
• 2.8 kg / 6 lb 2.7 oz (6.167 lb)

• Literature/Schematics (1)

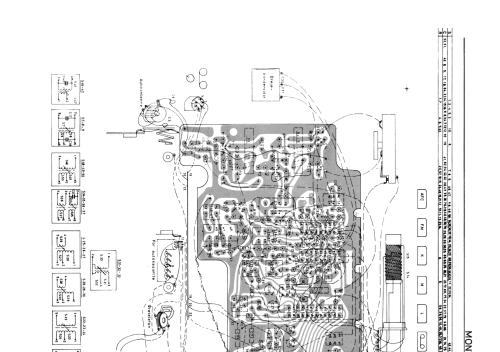

• -- Schematic

• Author
• Model page created by Jouko Laukkanen. See "Data change" for further contributors.
