Leonardo Luxus D23T815

Philips Radios - Deutschland

  • Year
  • 1968/1969
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 103827
    • Brand: Deutsche Philips-Ges.

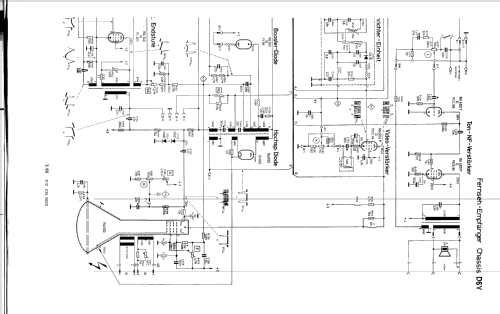

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Number of Transistors
  • 13
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Leonardo Luxus D23T815 - Philips Radios - Deutschland
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • 32 Dioden. VHF-Band I und III, UHF-Band IV. Gerät ist mit Chassis D6V ausgerüstet.
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Franz Born †. See "Data change" for further contributors.
