For model LS345B, Philips, Svenska AB, Stockholm:

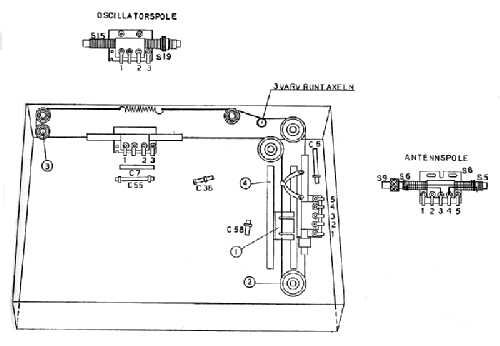

Philips service manual.

Country:  Sweden
Manufacturer / Brand:  Philips, Svenska AB, Stockholm
Year: 1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: DK96 DF96 DF96 DAF96 DL96
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 90 & 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: LS345B - Philips, Svenska AB, Stockholm
Material Moulded (Bakelite or Plastics)
Shape Portable set > 8 inch (also usable without mains)
Notes

See also LS355B

Inductive tuning with no external bandswitch.

Net weight (2.2 lb = 1 kg) 2.6 kg / 5 lb 11.6 oz (5.727 lb)

Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
