LS402B

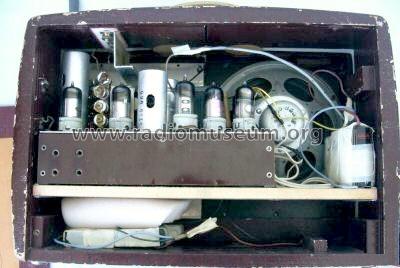

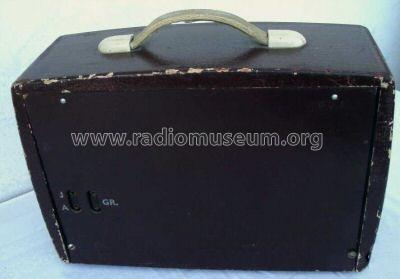

LS402B; Philips, Svenska AB, (ID = 1598941) Radio LS402B; Philips, Svenska AB, (ID = 118139) Radio
LS402B; Philips, Svenska AB, (ID = 118140) Radio LS402B; Philips, Svenska AB, (ID = 118141) Radio
LS402B; Philips, Svenska AB, (ID = 118142) Radio
Use red slider bar for more.
LS402B; Philips, Svenska AB, (ID = 1598941) Radio
Philips, Svenska AB,: LS402B [Radio] ID = 1598941 801x575
Select picture or schematic to display from thumbnails on the right and click for download.
For model LS402B, Philips, Svenska AB, Stockholm:
tradera.com VK:jaasal #199785037

Country:  Sweden
Manufacturer / Brand:  Philips, Svenska AB, Stockholm
Year: 1948 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: DK40 DAF40 DAF41 DAF40 DL41 DL41
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Dry Batteries
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: LS402B - Philips, Svenska AB, Stockholm
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 370 x 240 x 150 mm / 14.6 x 9.4 x 5.9 inch
Net weight (2.2 lb = 1 kg) 5.2 kg / 11 lb 7.3 oz (11.454 lb)
Collectors' prices

Model page created by Klaus Ortwein. See "Data change" for further contributors.



All listed radios etc. from Philips, Svenska AB, Stockholm
Here you find 189 models, 175 with images and 67 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
