• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1964

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 268975

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors
• AC107 OC75 OC44 AC107 OC75 OC44 AC125 AC128 AC128 AC125 AC128 AC128 OC79

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage

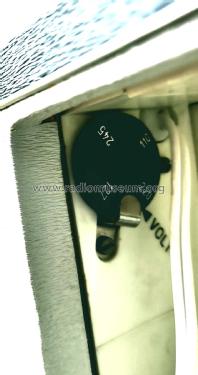

• Alternating Current supply (AC) / 110; 127; 220; 245 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 1.5 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org
• Model: Maestro 40 EL3547A /30 [Endstufe AC128] - Philips - Österreich

• Notes

• Geschwindigkeiten: 4,75 und 9,5cm/s, 18cm-Rollen, 4 Spur-Stereo.

  Wie Philips Maestro 40 EL3547A /30 [Endstufe OC74] aber mit verstärkter Endstufe 2 × 1,5 Watt.

  Parallelgerät zur Hornyphon Diola WM4200T/00 [Endstufe AC128]

• Literature/Schematics (1)
• -- Original-techn. papers.
