Maestro 4302 automatic N4302

Maestro 4302 automatic N4302; Philips - Österreich (ID = 102365) R-Player

Maestro 4302 automatic N4302; Philips - Österreich (ID = 102366) R-Player

Maestro 4302 automatic N4302; Philips - Österreich (ID = 425594) R-Player
Maestro 4302 automatic N4302; Philips - Österreich (ID = 2301933) R-Player Maestro 4302 automatic N4302; Philips - Österreich (ID = 2301934) R-Player
Maestro 4302 automatic N4302; Philips - Österreich (ID = 2301936) R-Player Maestro 4302 automatic N4302; Philips - Österreich (ID = 2301935) R-Player
Maestro 4302 automatic N4302; Philips - Österreich (ID = 2301938) R-Player Maestro 4302 automatic N4302; Philips - Österreich (ID = 2301937) R-Player
Maestro 4302 automatic N4302; Philips - Österreich (ID = 102364) R-Player Maestro 4302 automatic N4302; Philips - Österreich (ID = 765308) R-Player
Maestro 4302 automatic N4302; Philips - Österreich (ID = 766303) R-Player Maestro 4302 automatic N4302; Philips - Österreich (ID = 1902626) R-Player
Use red slider bar for more.
Maestro 4302 automatic N4302; Philips - Österreich (ID = 2301933) R-Player
Philips - Österreich: Maestro 4302 automatic N4302 [R-Player] ID = 2301933 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Maestro 4302 automatic N4302, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1969–1971 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 7: BC107 BC149 BC148 BC148 BC107 AC187 AC188
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Maestro 4302 automatic N4302 - Philips - Österreich
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 360 x 125 x 255 mm / 14.2 x 4.9 x 10 inch
Notes Zweispur-Mono. Bandgeschwindigkeit: 9,5 cm/s; Spulen-Ø: 15 cm; Übertragungsbereich: 80-12000 Hz.
In den VDRG-Handbüchern nur als 4302 geführt.
Parallelgerät zum Horny WM9106.
Net weight (2.2 lb = 1 kg) 5.5 kg / 12 lb 1.8 oz (12.115 lb)
Price in first year of sale 198.00 DM
External source of data erb
Source of data Handbuch VDRG 1969/1970
Mentioned in Taxliste Franzis Verlag

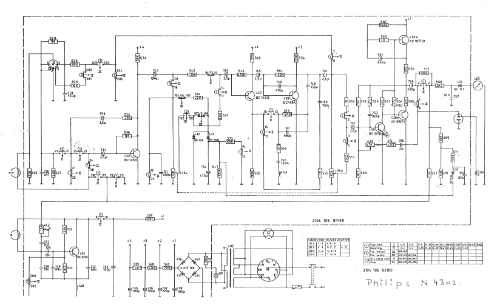

Literature/Schematics (1) -- Original-techn. papers.
