Maestro 4308 N4308 /50

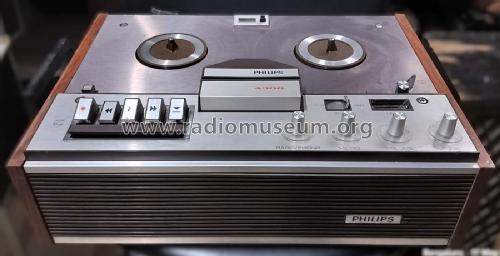

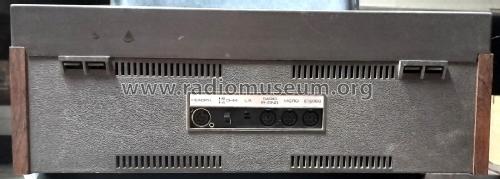

Philips - Österreich: Maestro 4308 N4308 /50 [R-Player] ID = 2134150 900x600
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1968–1973 | Category: Sound/Video Recorder and/or Player | ||||
| Semiconductors (the count is only for transistors) | 10: BC109 BC109 BC109 BC108 BC108 BC107 AC187 AD161 AD162 AC125 |
|---|
| Main principle | Audio-Amplification |
|---|---|
| Wave bands | - without |
| Details | Tape Recorder |
| Power type and voltage | Alternating Current supply (AC) / 110; 127; 220; 245 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical |
| Power out | 4 W (unknown quality) |
| from Radiomuseum.org | Model: Maestro 4308 N4308 /50 - Philips - Österreich |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 420 x 140 x 300 mm / 16.5 x 5.5 x 11.8 inch |
| Notes | Philips N4308 mit alternativer Transistoren-Bestückung je nach Produktionsdatum: BC149, BC149, BC149, BC148, BC148, AC187/01, BC107, AD161, AD162, AC125. Vierspur-Mono. Bandgeschwindigkeiten: 4,75/9,5 cm/s; Spulen-Ø: 18 cm; Übertragungsbereich bei 9,5 cm/s: 60-14000 Hz. In den VDRG-Handbüchern 1968-1970 nur als 4308 und ab 19171 nur als N4308 gelistet. |
| Net weight (2.2 lb = 1 kg) | 7.5 kg / 16 lb 8.3 oz (16.52 lb) |
| External source of data | Erb |
| Source of data | Handbuch VDRG 1971/1972 |
| Literature/Schematics (1) | -- Original-techn. papers. |
