Maestro 4418 N4418; Philips - Österreich (ID = 38486) R-Player

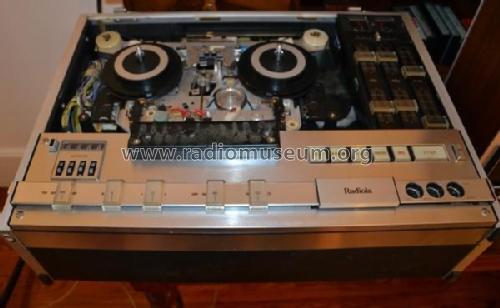

Philips - Österreich: Maestro 4418 N4418 [R-Player] ID = 38486 926x699

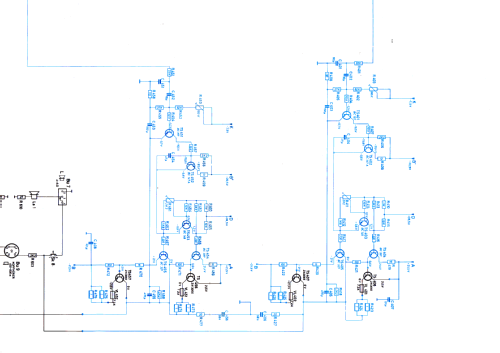

Select picture or schematic to display from thumbnails on the right and click for download.
For model Maestro 4418 N4418, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1971–1975 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 52:
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 245 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Maestro 4418 N4418 - Philips - Österreich
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 515 x 200 x 380 mm / 20.3 x 7.9 x 15 inch
Notes

HiFi-Stereo-Vierspur. Bandgeschwindigkeiten: 4,75/9,5/19 cm/s; Spulen-Ø: 18 cm. Übertragungsbereich bei 19 cm/s: 40-20000 Hz. Stereo-NF-Verstärker mit 2 Endstufen je 10 W. Betrieb in horizontaler und vertikaler Lage möglich.


Three motors. Three speeds: 4.75 / 9.5 / 19 cm/s( 1.7/8 / 3.3/4 / 7.1/2 ips). Max spool Ø: 18 cm. Frequency range at 19 cm/s: 40-20000 Hz. Stereo amplifier with 2 output stages each 10 W. This unit can operate in horizontal and vertical position. Output for external speakers with exclusion of the inside. Jack for stereo microphone and earphones. Inputs for Tuner, Tape, Aux and Phono.

HiFi Stereo record and play two tracks. Mono four tracks. In mono mode with a normal tape, 1.0 mils thickness, at 1.78 ips (4.75 cm/sec.) we can record about 12 hours.

Each button (Start, Stop, F.Forw, Rew, Play, Rec), controls the relative electronic board. All commands are executed by servocontrols with some relays. Considering the numerous problems, with the following model N4420, Philips has returned to the electromechanical controls.

Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
External source of data Erb
Source of data Handbuch VDRG 1971/1972 / Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Philips - Österreich
Here you find 1055 models, 990 with images and 846 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
