• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1959–1962

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 24223

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EF86 ECC83 ECL82 EM84 EZ80

• Number of Transistors

• Semiconductors
• OA85

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

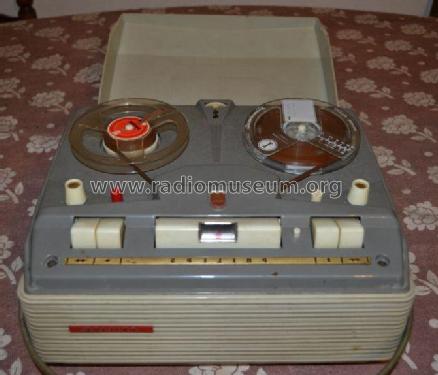

• Model: RK30 EL3541D /22Ga - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 400 x 175 x 345 mm / 15.7 x 6.9 x 13.6 inch

• Notes

• Philips EL 3541 D/22 Ga

  Vierspur; Bandgeschwindigkeit: 9,5 cm/s; Spulen-Ø 18 cm; Frequenzbereich 50-14000 Hz.

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Price in first year of sale
• 449.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1961/62

• Mentioned in
• HdB d.Rdf-& Ferns-GrH 1959/60

• Literature/Schematics (1)
• -- Original-techn. papers.
