• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7078

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• EC92 EC92 ECH81 EF41 EM34 EBF80 EB41 ECC40 EL84

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

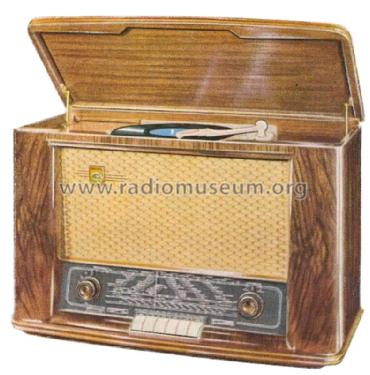

• Model: Merkur 54 HD534A - Philips Radios - Deutschland

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 650 x 420 x 290 mm / 25.6 x 16.5 x 11.4 inch

• Notes
• Rundfunk-Chassis = Saturn 54 BD633A;Phono-Chassis = AG2002 mit 33, 45 und 78 UpM; das Kristallsystem ist kippbar für N und M.

• Net weight (2.2 lb = 1 kg)
• 17.5 kg / 38 lb 8.7 oz (38.546 lb)

• Price in first year of sale
• 569.00 DM

• Source of data
• Kat.d.Rundf.GrossH.1953/54 / Radiokatalog Band 1, Ernst Erb
