Merkur BD492A

Merkur BD492A; Philips Radios - (ID = 5350) Radio

Merkur BD492A; Philips Radios - (ID = 1136017) Radio

Merkur BD492A; Philips Radios - (ID = 1136014) Radio

Merkur BD492A; Philips Radios - (ID = 1725314) Radio

Merkur BD492A; Philips Radios - (ID = 1725313) Radio
Merkur BD492A; Philips Radios - (ID = 84873) Radio Merkur BD492A; Philips Radios - (ID = 84875) Radio
Merkur BD492A; Philips Radios - (ID = 84877) Radio Merkur BD492A; Philips Radios - (ID = 137203) Radio
Merkur BD492A; Philips Radios - (ID = 137204) Radio Merkur BD492A; Philips Radios - (ID = 1039849) Radio
Merkur BD492A; Philips Radios - (ID = 1039844) Radio Merkur BD492A; Philips Radios - (ID = 1039846) Radio
Merkur BD492A; Philips Radios - (ID = 1039845) Radio Merkur BD492A; Philips Radios - (ID = 1990866) Radio
Use red slider bar for more.

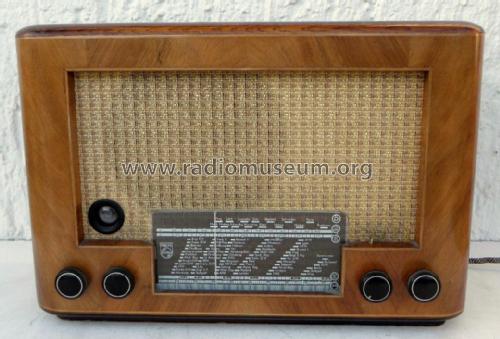

Merkur BD492A; Philips Radios - (ID = 84873) Radio
Philips Radios -: Merkur BD492A [Radio] ID = 84873 933x699.75
Select picture or schematic to display from thumbnails on the right and click for download.
For model Merkur BD492A, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1949–1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH4 EF9 EF9 EBL1 EM4 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 470.5 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Ready for FM, has Broadcast, Long Wave, Short wave.
Details
Power type and voltage Alternating Current supply (AC) / 110, 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
Power out
from Radiomuseum.org Model: Merkur BD492A - Philips Radios - Deutschland
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 490 x 335 x 200 mm / 19.3 x 13.2 x 7.9 inch
Notes Bandbreitenschalter
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Price in first year of sale 310.00 DM
Collectors' prices
Source of data Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange-Nowisch
Mentioned in Funk-Technik (FT) (49)
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
