Miniwatt Altavoz Octogonal 5" AD3500X, AD3500M, AD3500AM (bicono)

Miniwatt Altavoz Octogonal 5' AD3500X, AD3500M, AD3500AM ; Philips Ibérica, (ID = 2400460) Speaker-P
Use red slider bar for more.
Miniwatt Altavoz Octogonal 5' AD3500X, AD3500M, AD3500AM ; Philips Ibérica, (ID = 2400460) Speaker-P
Philips Ibérica,: Miniwatt Altavoz Octogonal 5" AD3500X, AD3500M, AD3500AM [Speaker-P] ID = 2400460 1400x1088
Select picture or schematic to display from thumbnails on the right and click for download.
For model Miniwatt Altavoz Octogonal 5' AD3500X, AD3500M, AD3500AM (bicono), Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona:

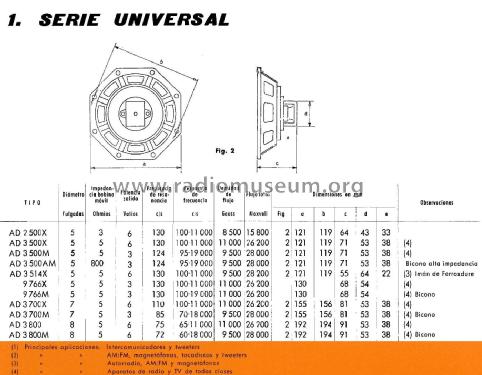

Folleto Altavoces Miniwatt (1965)

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona
Year: 1965 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Miniwatt Altavoz Octogonal 5" AD3500X, AD3500M, AD3500AM - Philips Ibérica, COPRESA,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 121 x 121 x 71 mm / 4.8 x 4.8 x 2.8 inch
Notes

Serie Universal, modelo octogonal de 5"

  • AD3500X      impedancia bobina móvil 5 Ω, resonancia 130 c/s
  • AD3500M     impedancia bobina móvil 5 Ω, resonancia 124 c/s
  • AD3500AM   impedancia bobina móvil 800 Ω, Bicono alta impedancia



Mentioned in -- Original prospect or advert (Folleto Altavoces Miniwatt (1965))
