• Year
  • 1969 ??
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 340711

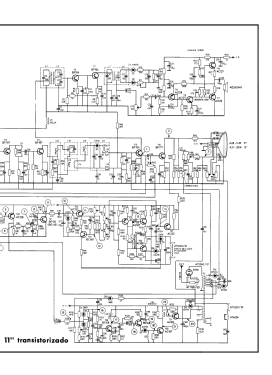

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Number of Transistors
  • 33
  • Main principle
  • Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Line / Storage batteries (perhaps also batteries) / 125; 220 / 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Miniwatt BO6 11" transistorizado con DY51 - Philips Ibérica, COPRESA,
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • Philips Ibérica, S.A.E. (COPRESA), Miniwatt B06 11" transistorizado

    TV B/N 11"

    • Selector rotativo de VHF Copresa AT-7652 /90T Memomatic
    • Sintonizador de UHF a Transistores Copresa AT-6380E

    Listado un único semiconductor por tipo








  • Literature/Schematics (1)
  • -- Schematic (Esquemario TV REDE, Tomo VI, 1970)
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
