Minstrel 7 MT9

Minstrel 7 MT9; Philips Australia (ID = 2420409) Radio
Minstrel 7 MT9; Philips Australia (ID = 2018160) Radio Minstrel 7 MT9; Philips Australia (ID = 2018170) Radio
Minstrel 7 MT9; Philips Australia (ID = 2018174) Radio Minstrel 7 MT9; Philips Australia (ID = 2018182) Radio
Minstrel 7 MT9; Philips Australia (ID = 2420410) Radio
Use red slider bar for more.
Minstrel 7 MT9; Philips Australia (ID = 2018160) Radio
Philips Australia: Minstrel 7 MT9 [Radio] ID = 2018160 1400x1049
Select picture or schematic to display from thumbnails on the right and click for download.
For model Minstrel 7 MT9, Philips Australia:

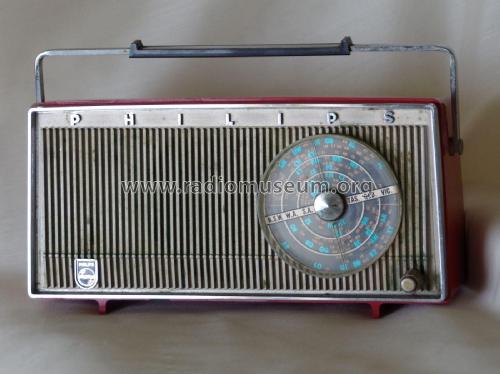

Main photo of one of my MT9s

Country:  Australia
Manufacturer / Brand:  Philips Australia
Year: 1965/1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: AF116N AF117N AF117N AC126 AC127 AC127 AC128 OA90 AA119

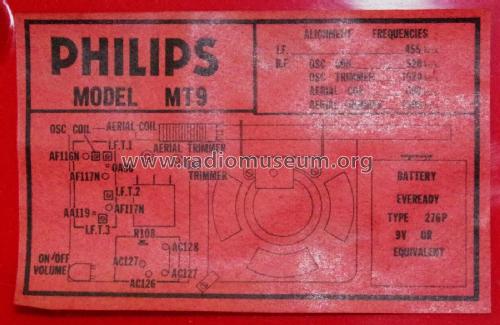

Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: Minstrel 7 MT9 - Philips Australia
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 9.75 x 5.0625 x 3.125 inch / 248 x 129 x 79 mm
Notes

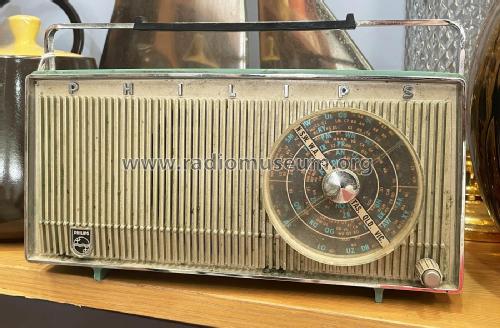

Philips Model MT9 "Minstrel"

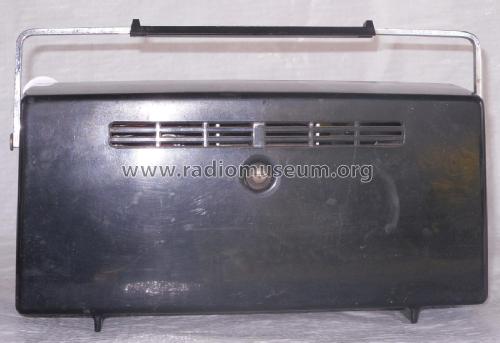

  Designed for use as a mantel or portable radio. Bright, easy-to-yune dial with all States clearly marked. Wrap-around moulded cabinet lifts off in one piece for ease of servicing. Colours: turquoise, charcoal, grey and red, all with silver and chrome fronts.

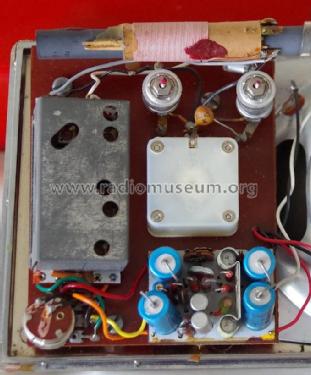

  Features: "mini-module" (UF302 & UA402) power chassis system. Seven transistors and two diodes. High efficiency 4" permagnetic speaker. Operates from one Eveready Type 276P (9V) battery. Can be operated from AC supply using Philips Power Pack (optional extra).

Price in first year of sale 43.95 AUS $
Mentioned in Mingay's Radio Electrical Weekly Price Service (REWPS) (Feb 1966 & Aug 1966.)

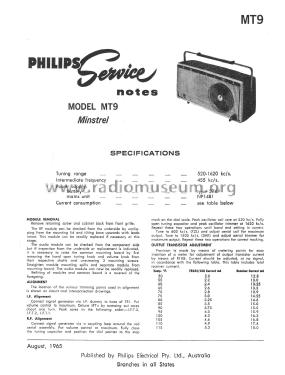

Literature/Schematics (1) - - Manufacturers Literature (Philips Service Notes, August 1965. (Also at KevinChant com))
Literature/Schematics (2) J.R. Publications Transistor Radio Service Handbook (Group C2, 1965, Page P30.)

Model page created by Brian Wilson. See "Data change" for further contributors.
