Musi Clock 455 90RS455

Musi Clock 455 90RS455; Philips - Österreich (ID = 140094) Radio Musi Clock 455 90RS455; Philips - Österreich (ID = 391809) Radio
Musi Clock 455 90RS455; Philips - Österreich (ID = 391811) Radio Musi Clock 455 90RS455; Philips - Österreich (ID = 391812) Radio
Use red slider bar for more.
Musi Clock 455 90RS455; Philips - Österreich (ID = 140094) Radio

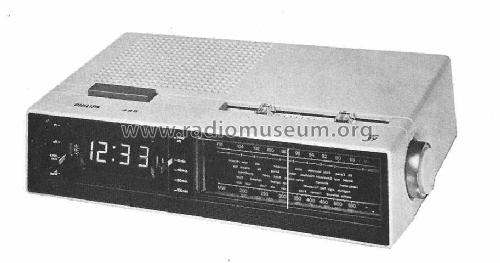

Philips - Österreich: Musi Clock 455 90RS455 [Radio] ID = 140094 912x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Musi Clock 455 90RS455, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1976/1977 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220-230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Musi Clock 455 90RS455 - Philips - Österreich
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 320 x 90 x 190 mm / 12.6 x 3.5 x 7.5 inch
Notes Selbstanlaufende Synchronuhr, 12-Stundenwerk; 24-Stunden-Weckeinrichtung.
Net weight (2.2 lb = 1 kg) 2.1 kg / 4 lb 10 oz (4.626 lb)
Source of data Handbuch VDRG 1976/1977 / Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original-techn. papers.

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
