Mini Hit N2002

Mini Hit N2002; Philips - Österreich (ID = 425872) R-Player
Mini Hit N2002; Philips - Österreich (ID = 962332) R-Player Mini Hit N2002; Philips - Österreich (ID = 415725) R-Player

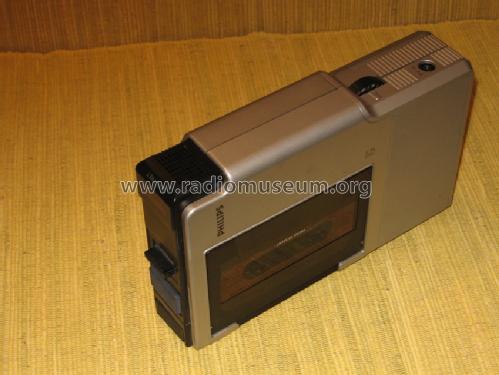

Mini Hit N2002; Philips - Österreich (ID = 425917) R-Player Mini Hit N2002; Philips - Österreich (ID = 982295) R-Player
Mini Hit N2002; Philips - Österreich (ID = 2113965) R-Player
Use red slider bar for more.
Mini Hit N2002; Philips - Österreich (ID = 962332) R-Player
Philips - Österreich: Mini Hit N2002 [R-Player] ID = 962332 513x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mini Hit N2002, Philips - Österreich:
Prospekt: Alle Klänge dieser Welt, Ausgabe 1978/79

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1976–1978 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 5: BC549 BC548 BC548 BD136 BD375 TBA820
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Dry Batteries / 5×1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Mini Hit N2002 - Philips - Österreich
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 140 x 120 x 42 mm / 5.5 x 4.7 x 1.7 inch
Notes Eingebautes Electret-Mikrofon. Steckernetzteil für 220 V im Lieferumfang.
Net weight (2.2 lb = 1 kg) 0.6 kg / 1 lb 5.1 oz (1.322 lb)
Price in first year of sale 198.00 DM
Source of data Handbuch VDRG 1977/1978
Mentioned in Taxliste Franzis Verlag (Philips Prospekt 1976)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
