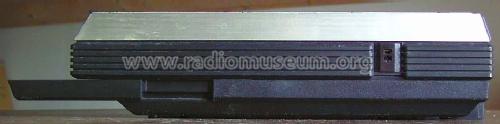

Cassette Recorder N2234

Cassette Recorder N2234; Philips - Österreich (ID = 225802) R-Player

Cassette Recorder N2234; Philips - Österreich (ID = 1170683) R-Player

Cassette Recorder N2234; Philips - Österreich (ID = 1170736) R-Player

Cassette Recorder N2234; Philips - Österreich (ID = 1170738) R-Player

Cassette Recorder N2234; Philips - Österreich (ID = 1170740) R-Player

Cassette Recorder N2234; Philips - Österreich (ID = 1170743) R-Player
Cassette Recorder N2234; Philips - Österreich (ID = 1135894) R-Player Cassette Recorder N2234; Philips - Österreich (ID = 224813) R-Player
Cassette Recorder N2234; Philips - Österreich (ID = 673472) R-Player Cassette Recorder N2234; Philips - Österreich (ID = 673474) R-Player
Cassette Recorder N2234; Philips - Österreich (ID = 673470) R-Player Cassette Recorder N2234; Philips - Österreich (ID = 673471) R-Player
Cassette Recorder N2234; Philips - Österreich (ID = 673473) R-Player Cassette Recorder N2234; Philips - Österreich (ID = 673475) R-Player
Cassette Recorder N2234; Philips - Österreich (ID = 673476) R-Player Cassette Recorder N2234; Philips - Österreich (ID = 673477) R-Player
Use red slider bar for more.
Cassette Recorder N2234; Philips - Österreich (ID = 1135894) R-Player
Philips - Österreich: Cassette Recorder N2234 [R-Player] ID = 1135894 813x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cassette Recorder N2234, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1982 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 4: BC549 BC548 BC548 BC548
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 127; 220-240 / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out 1.6 W (unknown quality)
from Radiomuseum.org Model: Cassette Recorder N2234 - Philips - Österreich
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 180 x 70 x 270 mm / 7.1 x 2.8 x 10.6 inch
Notes 2 Ausführungen: ../00 und ../15.
Elektronisch geregelter Motor mit automat. Bandendabschaltung, Long-Life-Magnetköpfe, eingebautes Electret-Mikrofon, für Ferro- und Chrom-Cassetten; Automatik für optimal ausgesteuerte Aufnahmen, 2 Ausführungen.
Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)
Collectors' prices
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Dirk Taekels. See "Data change" for further contributors.
