N3E46-T

N3E46-T; Philips Ibérica, (ID = 233421) Car Radio

N3E46-T; Philips Ibérica, (ID = 233430) Car Radio

N3E46-T; Philips Ibérica, (ID = 233432) Car Radio

N3E46-T; Philips Ibérica, (ID = 233435) Car Radio

N3E46-T; Philips Ibérica, (ID = 233436) Car Radio

N3E46-T; Philips Ibérica, (ID = 233434) Car Radio

N3E46-T; Philips Ibérica, (ID = 233788) Car Radio

N3E46-T; Philips Ibérica, (ID = 233437) Car Radio

N3E46-T; Philips Ibérica, (ID = 233438) Car Radio

N3E46-T; Philips Ibérica, (ID = 233431) Car Radio
N3E46-T; Philips Ibérica, (ID = 233418) Car Radio
Use red slider bar for more.
N3E46-T; Philips Ibérica, (ID = 233418) Car Radio
Philips Ibérica,: N3E46-T [Car Radio] ID = 233418 555x342
Select picture or schematic to display from thumbnails on the right and click for download.
For model N3E46-T, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona
Year: 1963 ? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 6: AF185 AF115 AF115 AF115 AC126 AD149 AA119
Main principle Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: N3E46-T - Philips Ibérica, COPRESA,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 176 x 54 x 123 mm / 6.9 x 2.1 x 4.8 inch

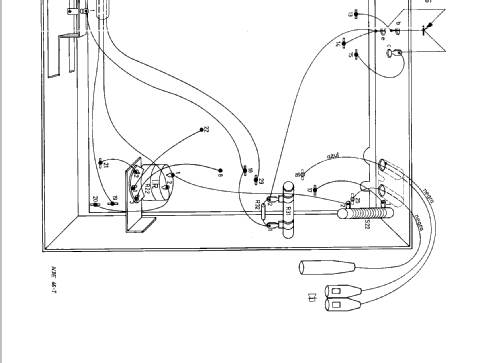

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.



All listed radios etc. from Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona
Here you find 549 models, 478 with images and 444 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
