N4511 /00 /04 /15 /19

N4511; Philips - Österreich (ID = 113521) R-Player

N4511; Philips - Österreich (ID = 113522) R-Player

N4511; Philips - Österreich (ID = 113523) R-Player

N4511; Philips - Österreich (ID = 113524) R-Player

N4511; Philips - Österreich (ID = 113525) R-Player

N4511; Philips - Österreich (ID = 113526) R-Player

N4511; Philips - Österreich (ID = 113527) R-Player

N4511; Philips - Österreich (ID = 113528) R-Player

N4511; Philips - Österreich (ID = 113529) R-Player
N4511; Philips - Österreich (ID = 122067) R-Player N4511; Philips - Österreich (ID = 252645) R-Player
N4511; Philips - Österreich (ID = 312293) R-Player N4511; Philips - Österreich (ID = 411338) R-Player
N4511; Philips - Österreich (ID = 411341) R-Player N4511; Philips - Österreich (ID = 1739659) R-Player
Use red slider bar for more.
N4511; Philips - Österreich (ID = 122067) R-Player
Philips - Österreich: N4511 [R-Player] ID = 122067 768x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model N4511 /00 /04 /15 /19, Philips - Österreich:
Firmenbild

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1975–1977 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder; Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 110, 127, 220, 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: N4511 [/00 /04 /15 /19] - Philips - Österreich
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 515 x 380 x 200 mm / 20.3 x 15 x 7.9 inch

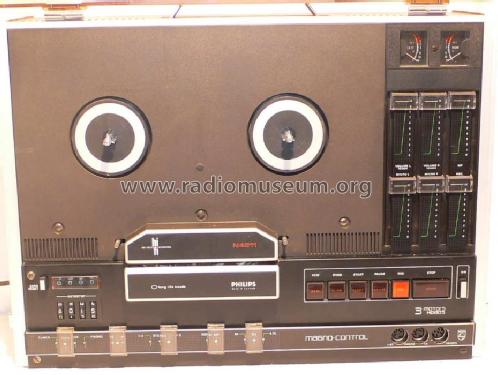

Notes Philips HiFi-Stereo-Tonbandgerät N4511.
Vierspur-Stereo; Bandgeschwindigkeiten: 4,75/9,5/19 cm/s; Spulen-Ø 18 cm; 3 Köpfe; 3 Motoren; vertikale oder horizontale Betriebslage. Fernbedienung N6719 für alle Laufwerksfunktionen als Zubehör.
4 Ausführungen: /00, /04, /15, /19.
Net weight (2.2 lb = 1 kg) 9.5 kg / 20 lb 14.8 oz (20.925 lb)
Source of data Handbuch VDRG 1975/1976 / Radiokatalog Band 2, Ernst Erb
Mentioned in Handbuch VDRG 1976/1977
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.



All listed radios etc. from Philips - Österreich
Here you find 1055 models, 990 with images and 852 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
