N4522

N4522; Philips - Österreich (ID = 308882) R-Player N4522; Philips - Österreich (ID = 308883) R-Player
N4522; Philips - Österreich (ID = 308884) R-Player N4522; Philips - Österreich (ID = 308885) R-Player
N4522; Philips - Österreich (ID = 1135057) R-Player N4522; Philips - Österreich (ID = 1135058) R-Player
N4522; Philips - Österreich (ID = 1135059) R-Player N4522; Philips - Österreich (ID = 1135060) R-Player
N4522; Philips - Österreich (ID = 1177454) R-Player N4522; Philips - Österreich (ID = 1177455) R-Player
Use red slider bar for more.

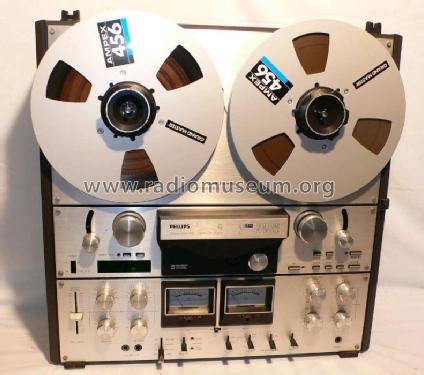

N4522; Philips - Österreich (ID = 308882) R-Player
Philips - Österreich: N4522 [R-Player] ID = 308882 792x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model N4522, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1979–1984 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 120; 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: N4522 - Philips - Österreich
Material Various materials
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 530 x 530 x 230 mm / 20.9 x 20.9 x 9.1 inch
Notes Halbspur Stereo; Bandgeschwindigkeiten: 9,5/19/38 cm/s. 3 Motoren, 3 Tonköpfe, Spulen-Ø: 26,5 cm.
Net weight (2.2 lb = 1 kg) 25 kg / 55 lb 1.1 oz (55.066 lb)
Source of data - - Data from my own collection

Model page created by Peter Böhm. See "Data change" for further contributors.
