• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1980 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 251389

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: HIFI Cassette Deck N5431 /00 /15 - Philips; Eindhoven tubes

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 450 x 140 x 265 mm / 17.7 x 5.5 x 10.4 inch

• Notes
• • Head Configuration
    • 2 Head Design
    • 4 Track / 2 Channel
  • Noise Reduction
    • Dolby-B Noise Reduction
    • MPX Filter
  • Connectivity
    • 2 Mono Microphone Inputs
    • Headphones
    • RCA Input/Output Connectors
    • DIN Input/Output Connector
  • Operation
    • Mechanical Transport Control
    • Cue / Review
    • Memory Stop
  • Preamplifier
    • Output-Level Control
    • Individual Input Level Controls
  • Display
    • 3-Digıt Mechanical Counter
    • Analog Needle Meters

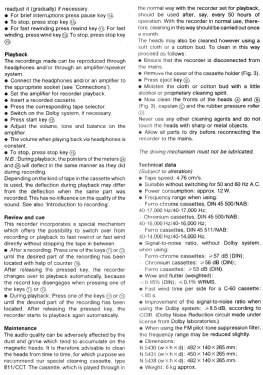

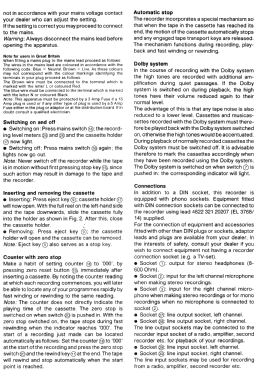

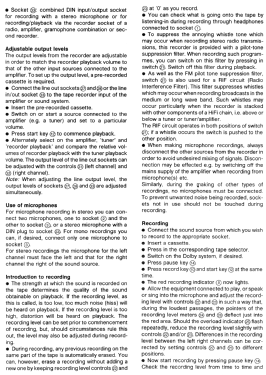

  Bedienungsanleitung und Datenblatt in Deutsch sind beim HIFI Cassette Deck N5430.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Giuseppe Tedesco. See "Data change" for further contributors.
