• Country
• Belgium

• Manufacturer / Brand
• Philips Belgium (Belgien)

• Year
• 1979 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 349989

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 63

• Semiconductors

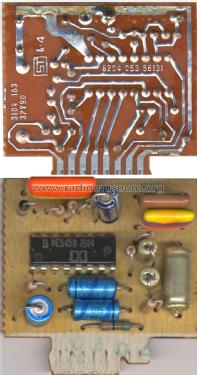

• BC337 BC547 BC548 BC550 BC558 BD234 BD135 NE545

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 50-60 Hz, 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: HIFI Cassette Deck N5430 /00 - Philips Belgium Belgien

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 482 x 140 x 265 mm / 19 x 5.5 x 10.4 inch

• Notes

• Netzspannung kann vom Fachmann durch umlöten geändert werden.

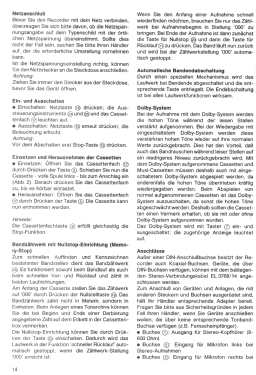

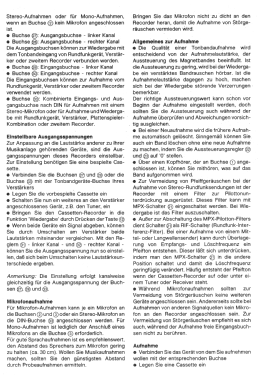

  Weitere Daten im Datenblatt der Bedienungsanleitung.

  Gelistete Transistoren sind mehrfach vorhanden, ggf. auch weitere Typen. Anzahl unsicher.

  Data and user-guide in English are attached to Model N5431 /00 /1

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Heribert Jung. See "Data change" for further contributors.
