• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1958/1959

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 30280

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• EF89 ECH81 ECH81 EL84

• Main principle
• Superhet with RF-stage; ZF/IF 452 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 6/12 Volt

• Material
• Metal case

• from Radiomuseum.org

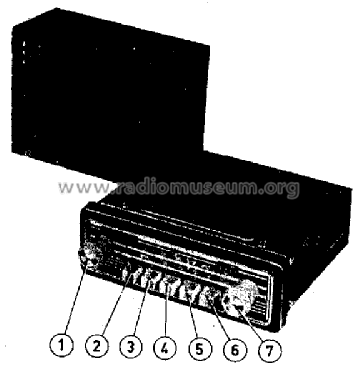

• Model: N5X84V - Philips; Eindhoven tubes

• Dimensions (WHD)
• 175 x 54 x 140 mm / 6.9 x 2.1 x 5.5 inch

• Notes
• Zerhacker: AP6016

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
