N6301

N6301; Philips - Österreich (ID = 1326879) Speaker-P N6301; Philips - Österreich (ID = 1326882) Speaker-P
Use red slider bar for more.
N6301; Philips - Österreich (ID = 1326879) Speaker-P
Philips - Österreich: N6301 [Speaker-P] ID = 1326879 930x509
Select picture or schematic to display from thumbnails on the right and click for download.
For model N6301, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1973 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - Is a Headphone or Earphone
Power out
from Radiomuseum.org Model: N6301 - Philips - Österreich
Material Modern plastics (no Bakelite or Catalin)
Dimensions (WHD) 210 x 175 x 0 mm / 8.3 x 6.9 x 0 inch
Notes

Cuffia stereofonica Philips N 6301- Made in Austria, attacco originale DIN.

Caratteristiche tecniche:

  • Gamma di frequenze: 20 - 20.000 Hz;
  • Impedenza: 2 x 600 ohm;
  • Sensibilità: 112 dB a 1 mW;
  • Potenza massima ammissibile: 2 x 20 mW;
  • Doppio archetto regolabile;
  • Cavetto spiralato uso telefonico;
  • Dimensioni: 210 mm x 175 mm



Net weight (2.2 lb = 1 kg) 0.320 kg / 0 lb 11.3 oz (0.705 lb)
Price in first year of sale 160.00 FRF

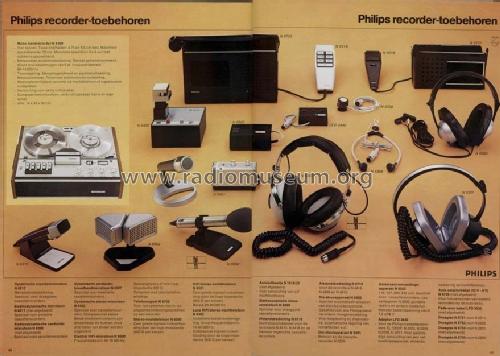

Source of data -- Original prospect or advert

Model page created by Gianluigi Miazzi. See "Data change" for further contributors.
